First, preface: ASUS’s first foldable OLED thin and light, a real PC tablet in one.

The mobile phone in the form of folding screen is no stranger to everyone, but in the notebook field, the folding form was conceived and designed many years ago in order to meet the office and entertainment needs in more diverse scenes.

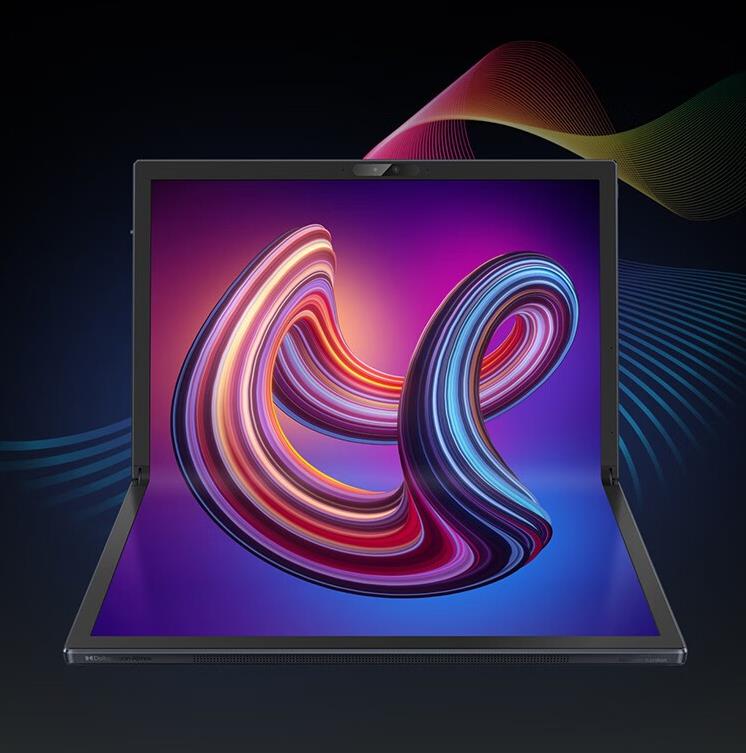

Asus, which is famous for its rock quality, has finally brought the world’s first 17.3-inch OLED folding screen notebook to the market, which is Lingyao X Fold.

It stands out from the crowd,It has a 17.3-inch OLED folding screen, which supports arbitrary switching of six forms, supplemented by cool design.At the beginning, the correct way to open the folding screen notebook was established.

The main features of Lingyao X Fold are:

1. 17.3-inch folding OLED large screen

Lingyao X Fold uses a 17.3-inch OLED folding screen, which accounts for 87% of the screen, and the ratio of 4:3 makes the notebook have more working space.

The 180-degree precision hinge of the folding screen has also undergone 30,000 rigorous tests, and its durability has reached the same level as that of the new generation of folding screen mobile phones.

Since it is an OLED screen, its quality is naturally first-class, it supports 2.5K resolution, has 1.07 billion color display, covers 100%P3 wide color gamut, and the peak brightness reaches 500 nits, which makes the office light and thin book have a peerless screen.

2. Play with the notebook for up to 6 usage scenarios.

Lingyao X Fold comes with a magnetic Bluetooth keyboard, which can switch up to six usage scenarios when matched with the notebook.

The expanded 17.3-inch large screen can become a huge tablet computer, and instantly become a large-screen notebook by connecting with a magnetic keyboard.

In the semi-folded state, the keyboard can be attached to the lower half of the screen, and the notebook changes standard form every second.

3. Symmetric 4-speaker Harman Kardon sound effect certification

Lingyao X Fold is equipped with two-unit speakers at the top and bottom, forming a symmetrical 4-speaker combination, with SmartAMP intelligent power amplifier, supporting Dolby panoramic sound, and passed Harman Kardon sound effect certification.

In addition, it uses Intel’s 12th generation Core U series low-power processors, with mixed architecture design, and has passed the rigorous certification of Intel Evo platform.

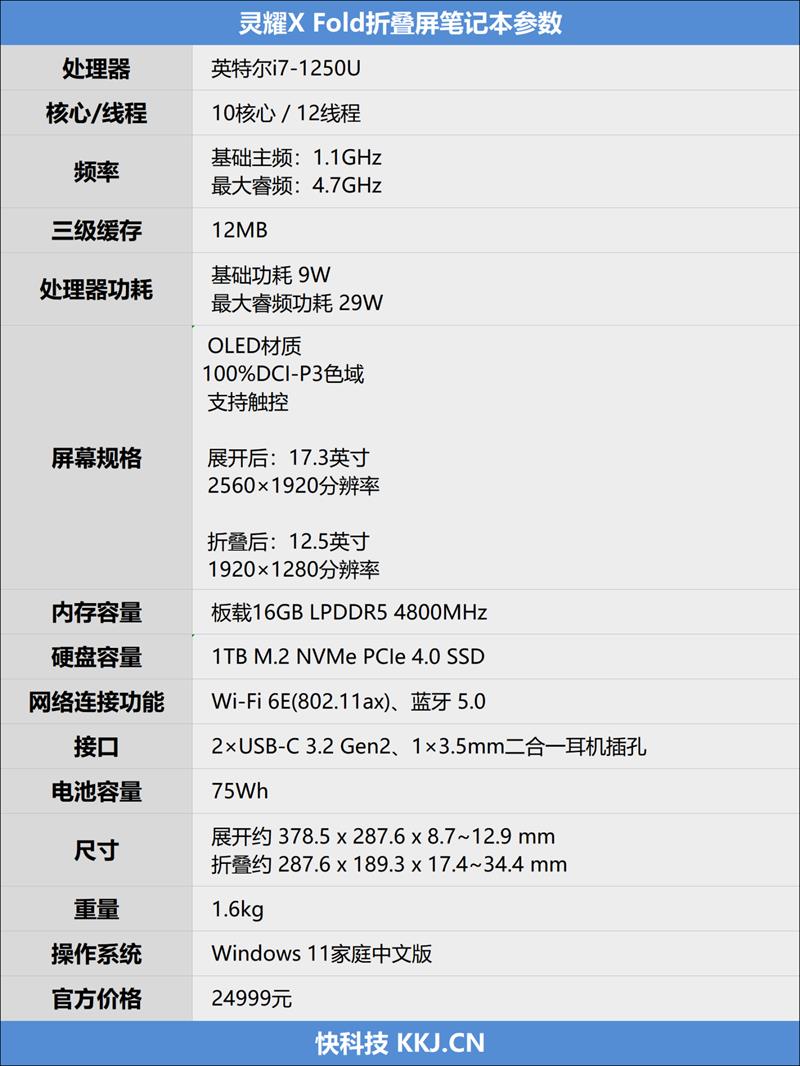

The following are the detailed parameters of Lingyao X Fold folding notebook:

Second, the appearance: 17.3-inch OLED large-screen magnesium alloy material texture is full.

Lingyao X Fold folding notebook uses a 17.3-inch OLED display with a resolution of 2560×1920 and supports 100%P3 color gamut.

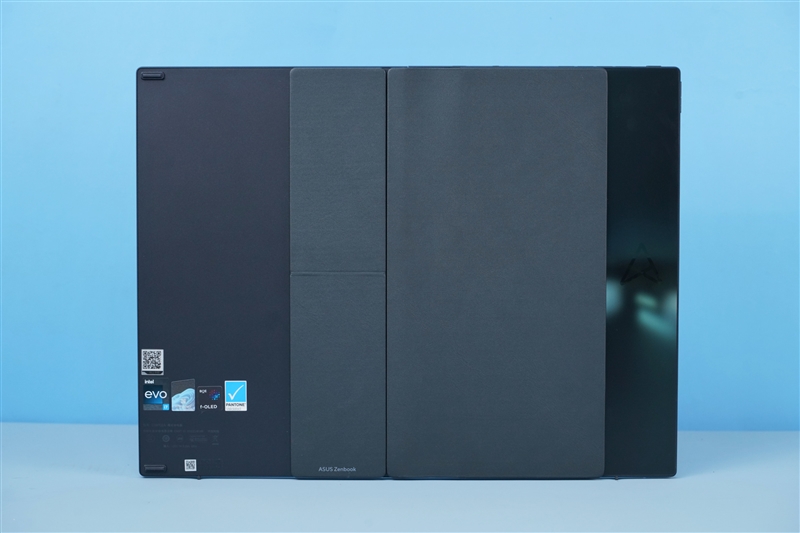

The surface A is made of magnesium alloy, and the surface D is covered by mirror screen, and equipped with artificial leather ergonomic support.

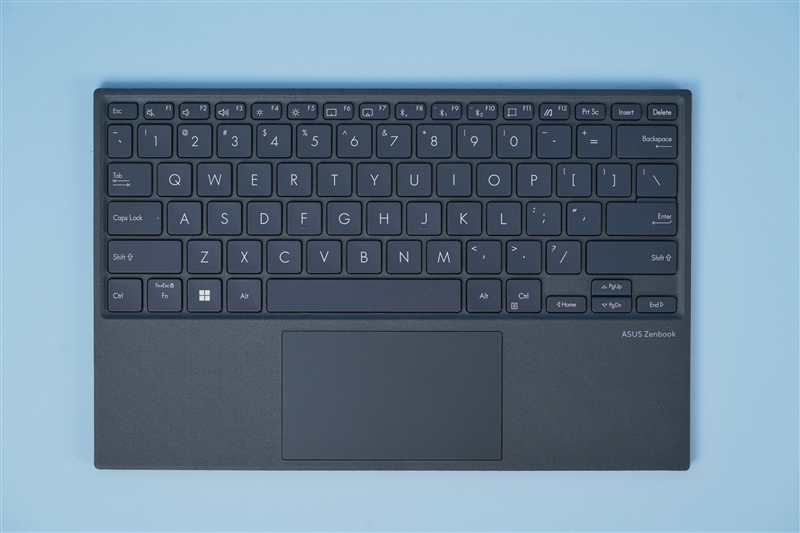

Lingyao X Fold is equipped with ErgoSense magnetic Bluetooth keyboard, weighing 0.39 kg, with built-in Type-C charging connector, power switch and status indicator light on the right side.

The screen of Lingyao X Fold supports various forms of display, including desktop mode and tablet mode extension mode, and we will experience it in detail.

In the desktop mode, the Bluetooth keyboard is a magnetic keyboard with a size of 19.05mm, a long stroke of 1.4mm, and a large touchpad at the bottom, which makes the operation silky.

The keyboard supports Bluetooth 5.2 wireless connection, and the integrated touch panel can be attached to the lower part of the screen, at which time the screen will automatically change to the 12.5-inch display in the upper part.

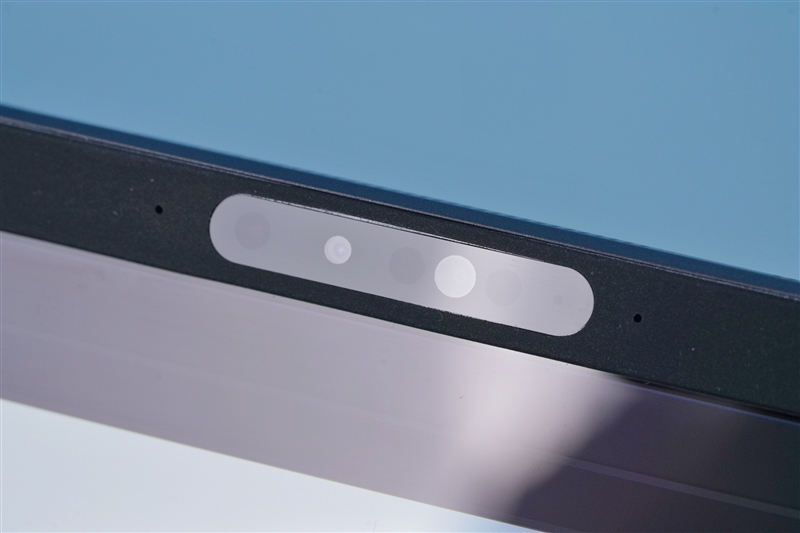

There is a 5 megapixel HD camera at the top of the screen, and the HD infrared camera is retained, which supports Windows Hello face unlocking.

Lingyao X Fold adopts an innovative 180 precision hinge design, and the folding durability can reach 30,000 times.

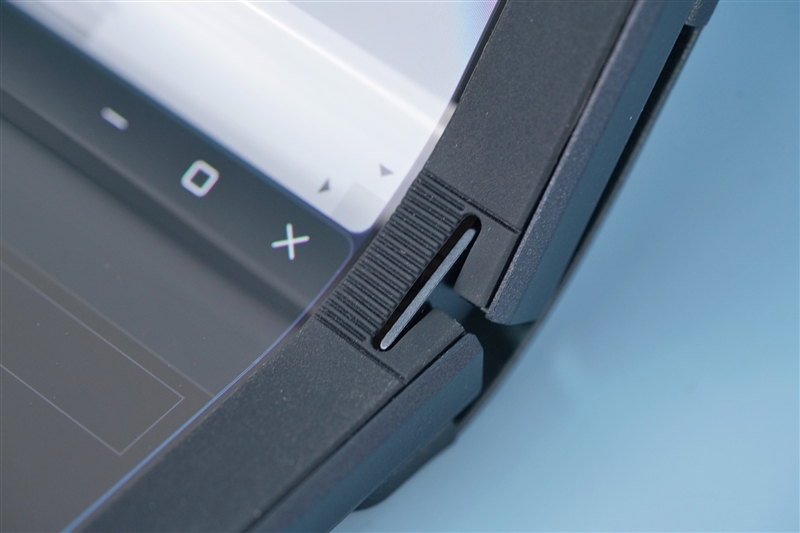

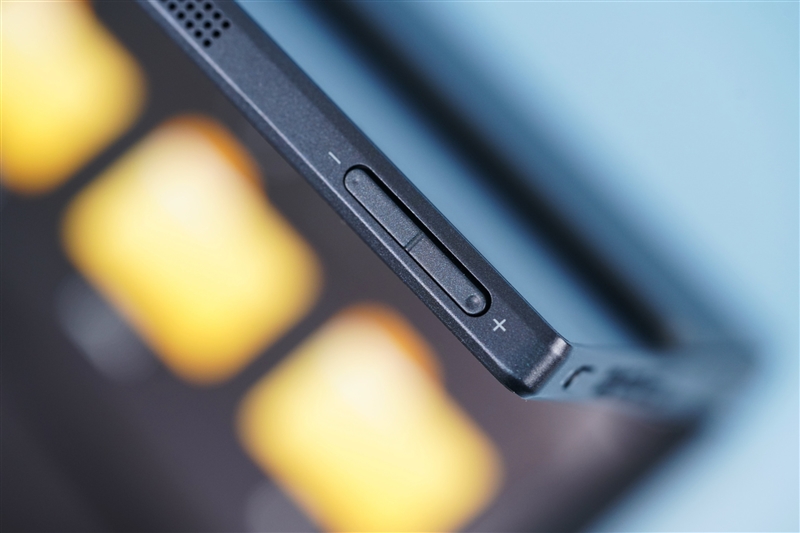

Equipped with a volume button on the side of the notebook.

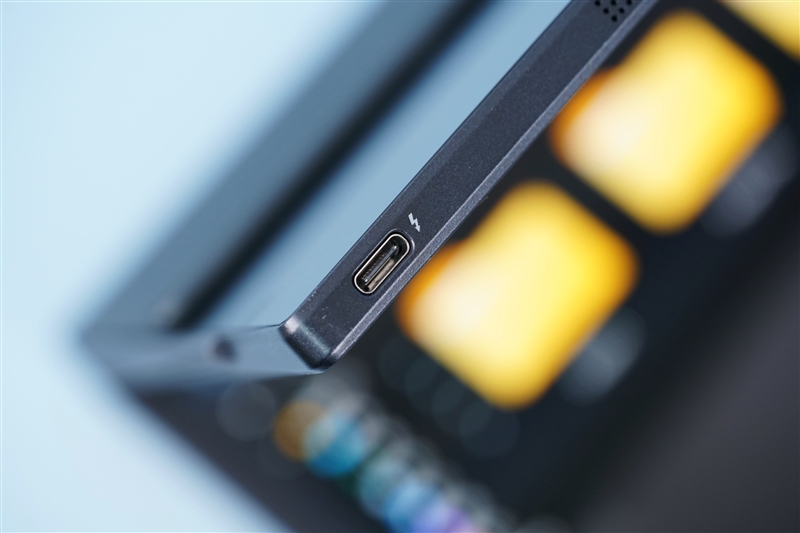

There is a thunderbolt 4/USB-C interface at the top of the notebook, and the transmission rate can reach up to 40Gbps.

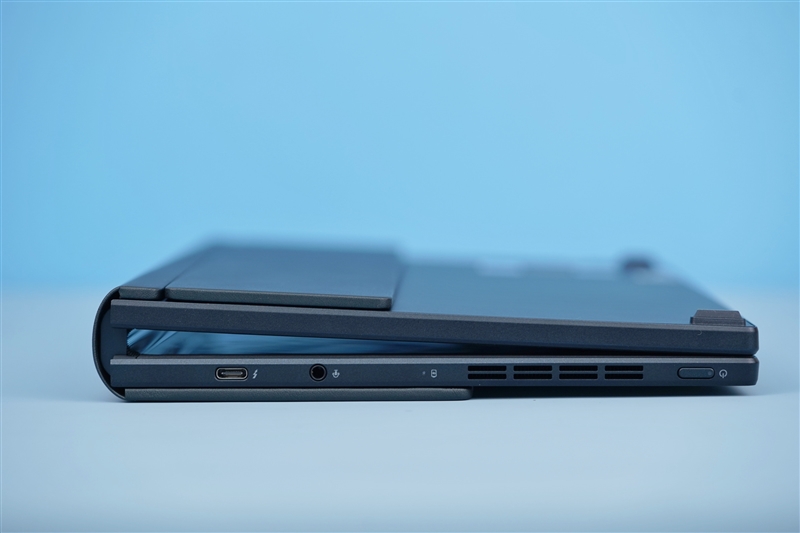

The side of the fuselage is also equipped with a thunderbolt 4/USB-C interface and a 3.5mm headphone interface.

To the right are the charging indicator light, the heat dissipation opening and the power button.

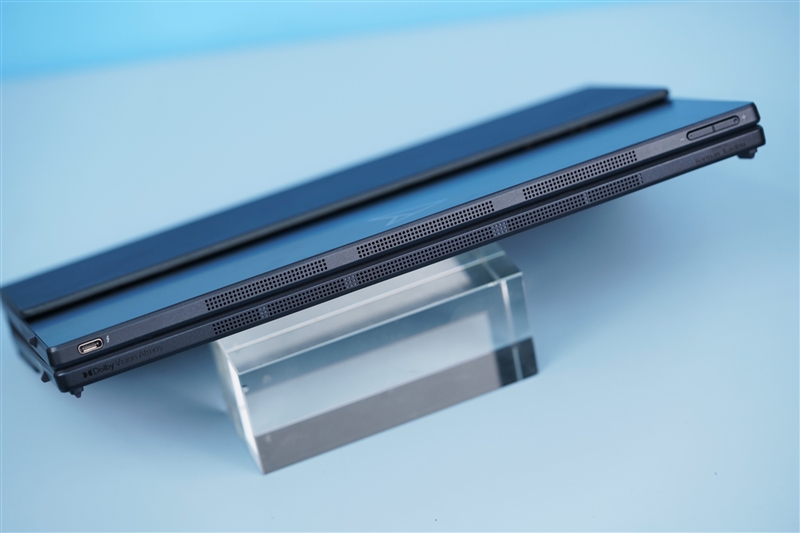

Both the top and bottom of the notebook are equipped with speaker openings, which can present a shocking stereo effect.

At the same time, the weight of the whole machine is about 1.6kg (excluding the magnetic keyboard), the thinnest part is about 8.7mm, and the portability is also very good.

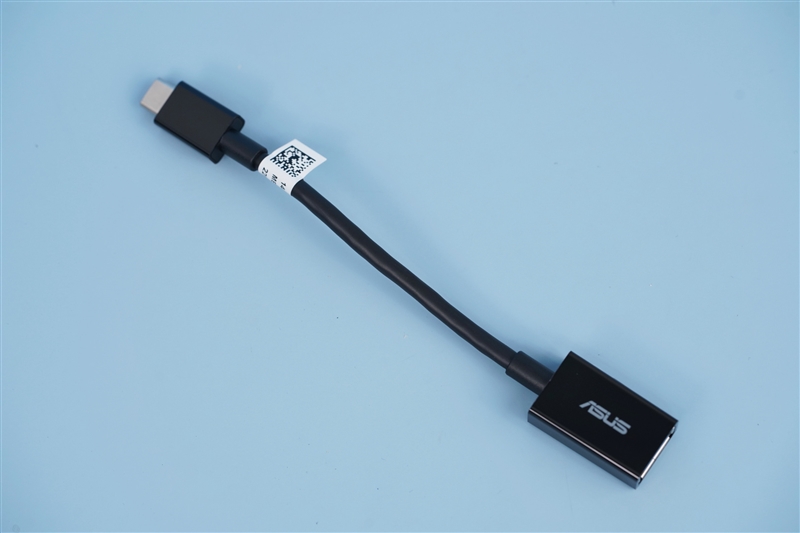

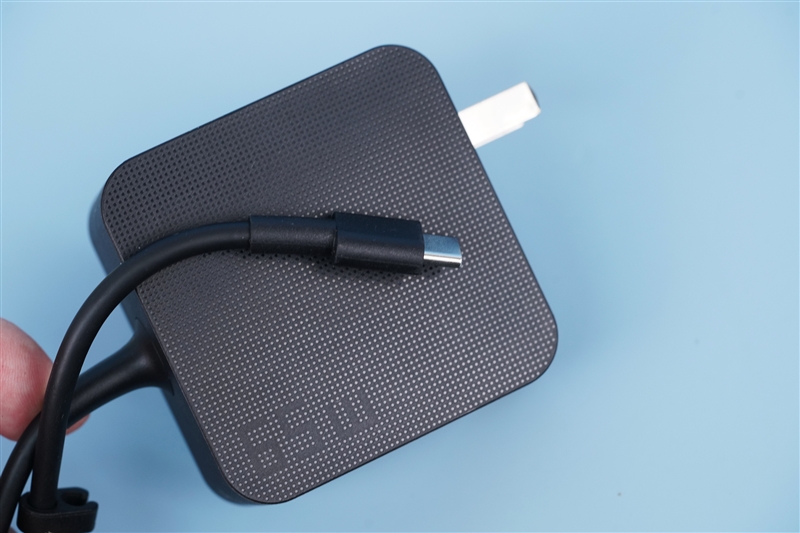

A 65W charger and a Type-C-to-USB conversion cable are also included in the package.

Third, the screen test: support 100%P3 color gamut with excellent quality.

Lingyao X Fold is equipped with a 17.3-inch OLED folding screen, its color gamut coverage reaches 100%P3 level, it supports 10-bit color display, and its peak brightness can reach 500nits under HDR.

At the same time, this screen has also passed the Display HDR True Black500 and TUV low blue light certification, which is excellent in display quality.

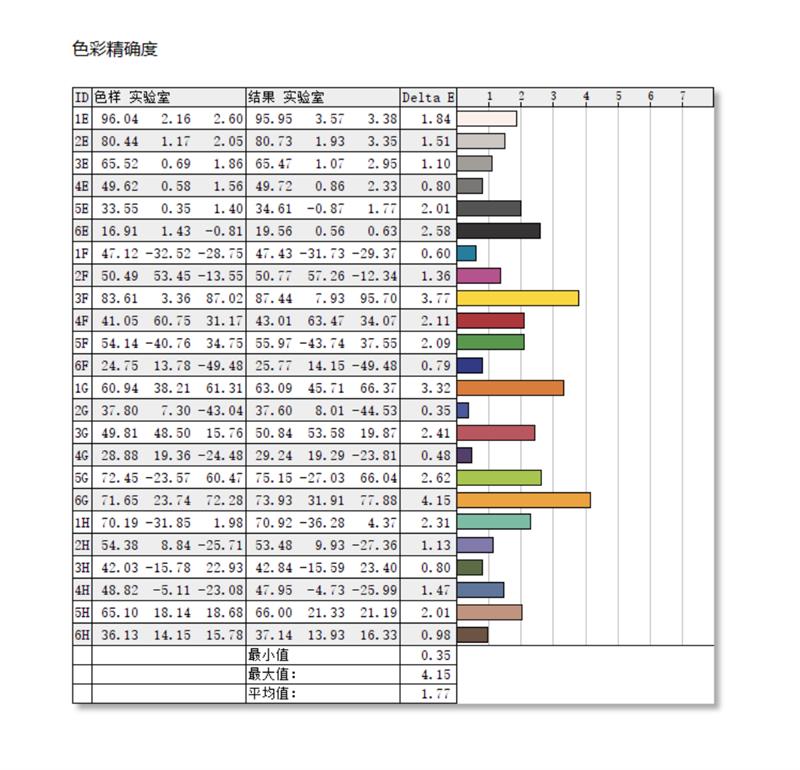

After testing, the average DeltaE value of this screen is 1.77, the maximum value is 4.15, and the minimum value is 0.35. When the DeltaE is lower than 2, it can be used as a professional display.

From the above results, this screen made of OLED material has excellent values in all aspects.

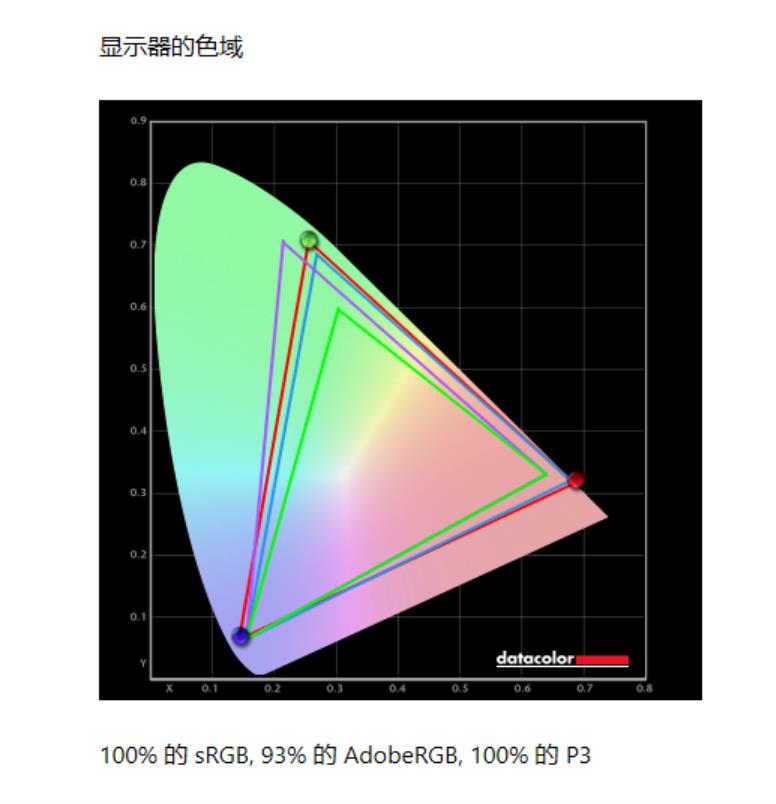

Lingyao X Fold actually supports 100%sRGB, 93% Adobe RGB and 100%P3 color gamut display, with perfect coverage.

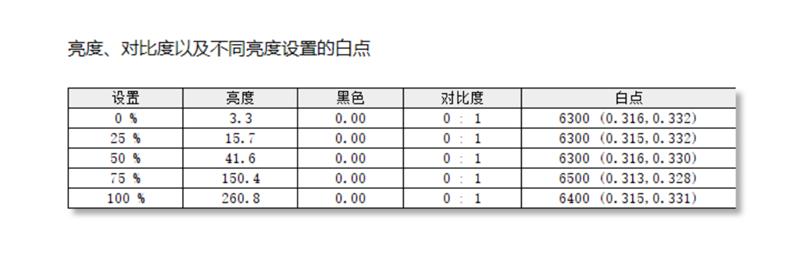

In terms of brightness, in SDR mode, the highest measured brightness is 260.8nits, and the white balance difference of five-step brightness is not too big.

If you are in HDR mode, the brightness is even higher.

Fourth, the folding experience: six forms can be switched at will, and multiple scenes can be used without pressure.

Similar to many folding screen mobile phones, the folding hinge adopted by Lingyao X Fold also supports free hovering. With the design of magnetic Bluetooth keyboard, it is flexible in practicality and supports arbitrary switching of up to six forms, bringing a new interactive experience between notebook and tablet.

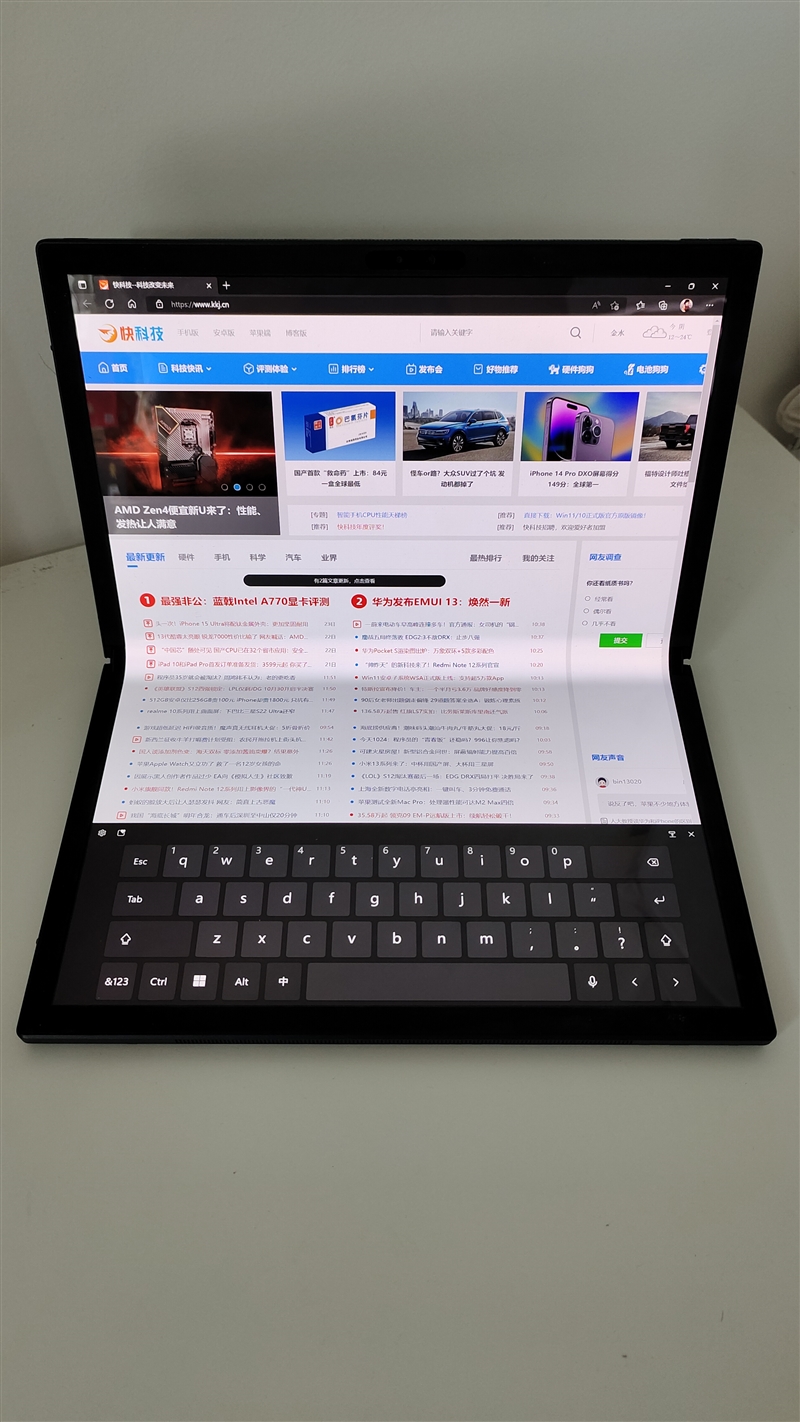

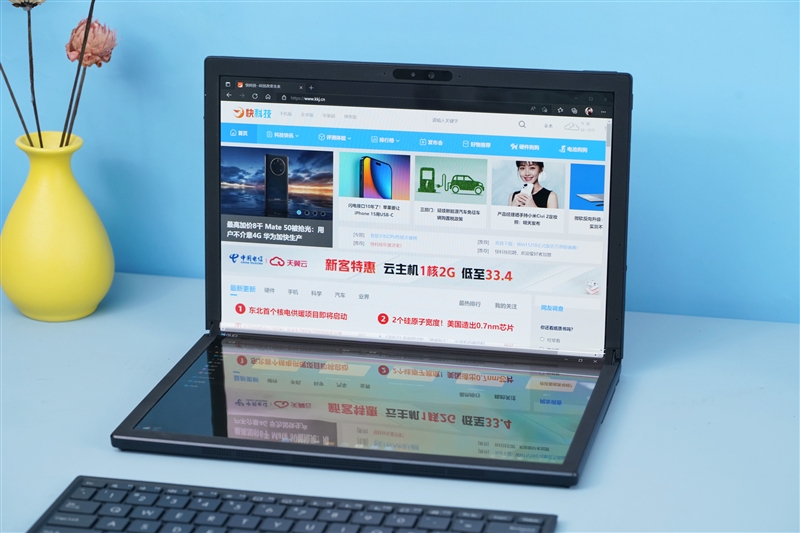

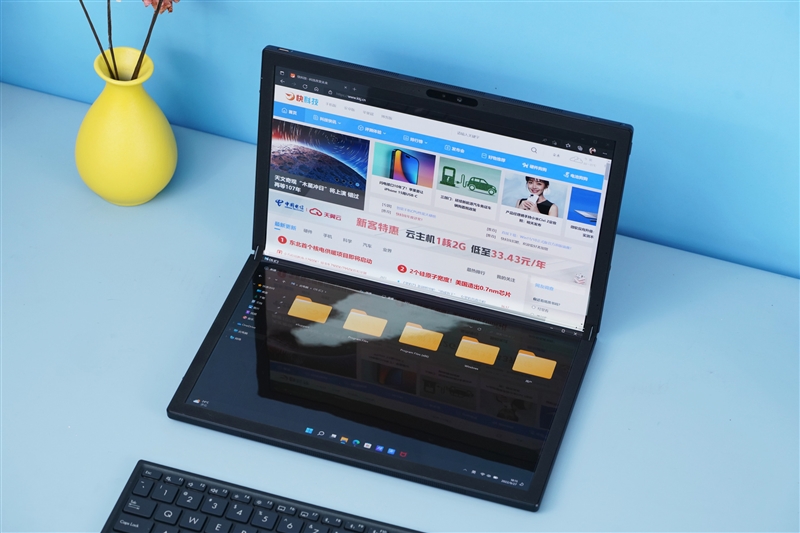

1. Notebook mode (virtual keyboard)

The first is the notebook form, in which the screen is bent horizontally, and a virtual keyboard appears below when inputting text, and the screen can hover at any angle, just like the rotating shaft of a traditional notebook.

However, because it is a virtual keyboard, there is no touch feedback when tapping, and it may take some time to get used to it for the first time.

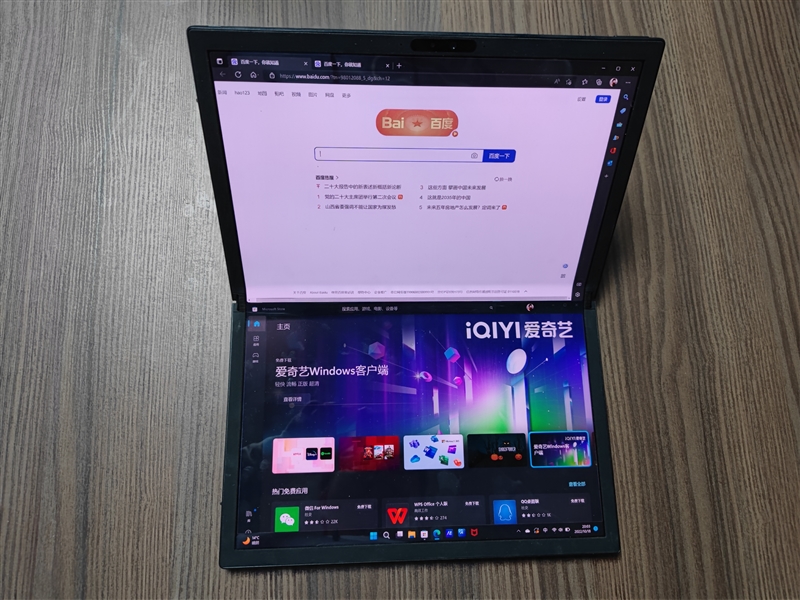

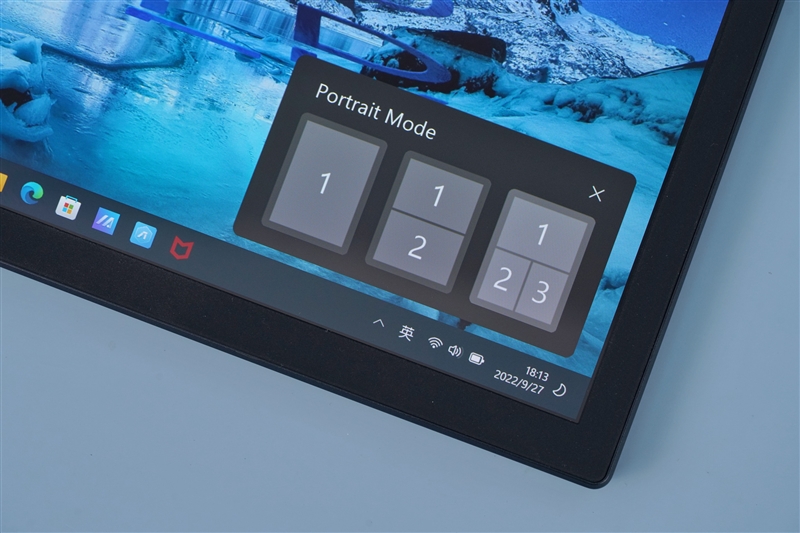

When we bend the screen, there will be three window layouts on the lower right, which can be freely selected according to the needs.

Not to mention the single window, the double window will be displayed in the upper and lower parts of the screen respectively, and the operation of the two parts will not affect each other.

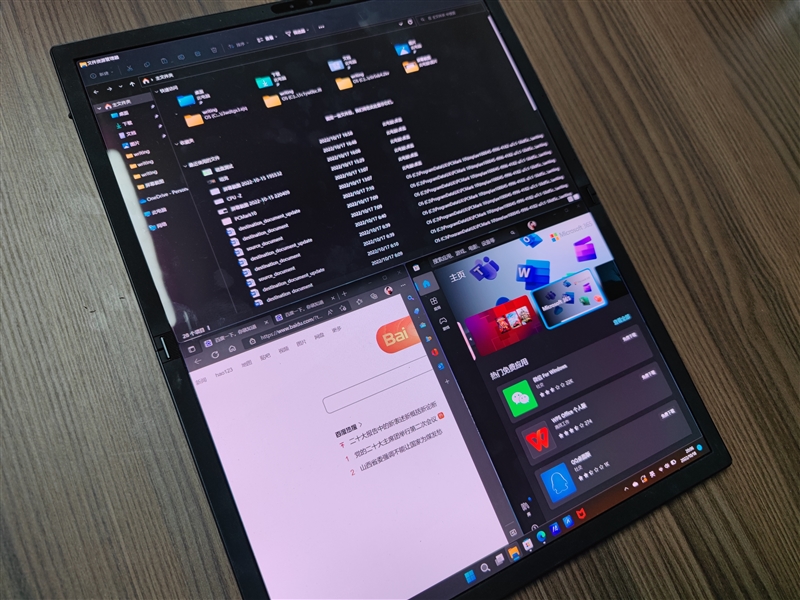

The three windows will be displayed in the shape of a "pin", so that users will not drag and drop the windows one by one, so that the multi-window display on the same screen is more intuitive, and the multi-task operation is extremely convenient, and there is no need to cut and cut the windows.

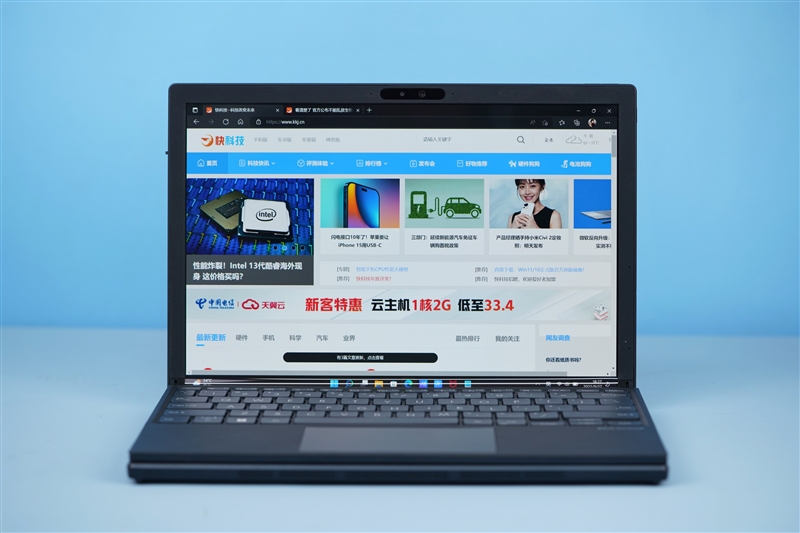

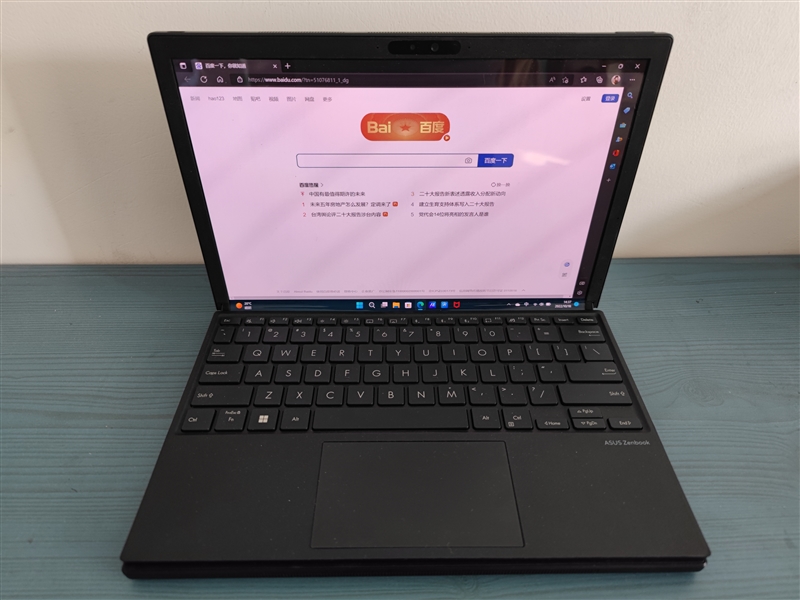

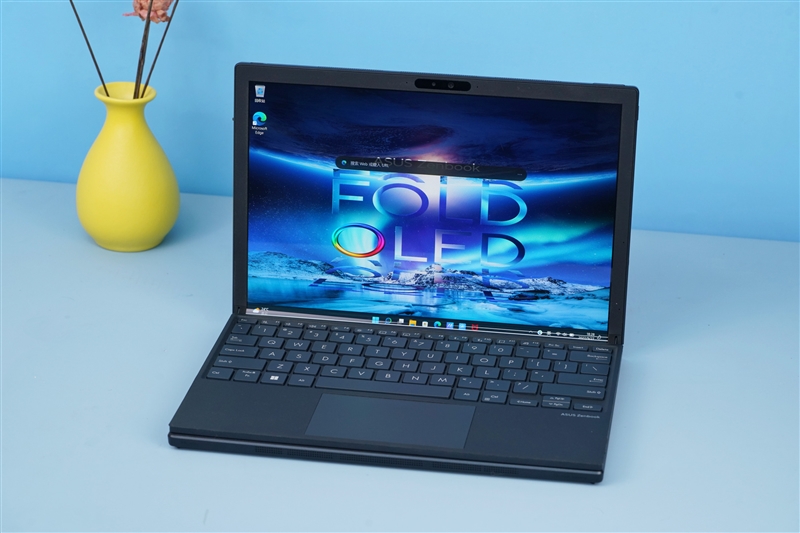

2. Notebook mode (physical keyboard)

The magnetic Bluetooth keyboard matched with Lingyao X Fold will automatically adsorb as long as it is placed in the lower part of the screen.

At this point, everything on the screen will be intelligently converted to the upper part of the display, which is equivalent to a 12.5-inch screen with a resolution of 1920×1280.

Although the fineness of the display will be reduced at this time, it is sufficient mainly for text input scenes.

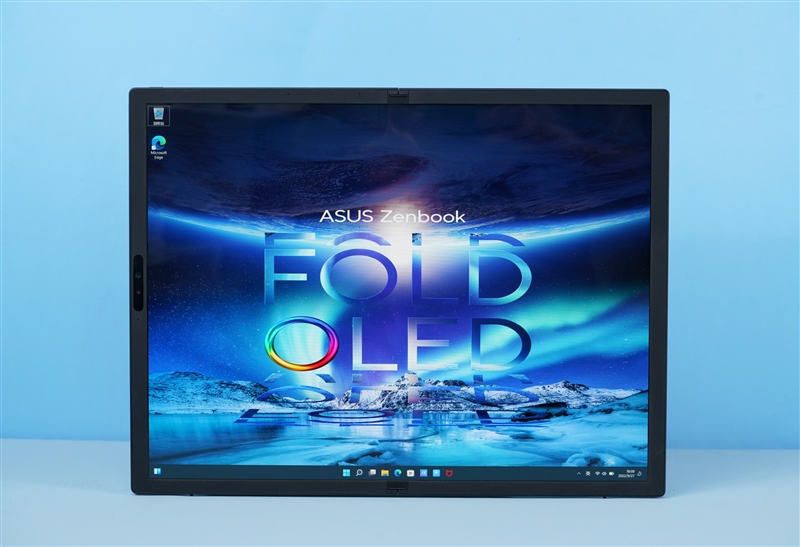

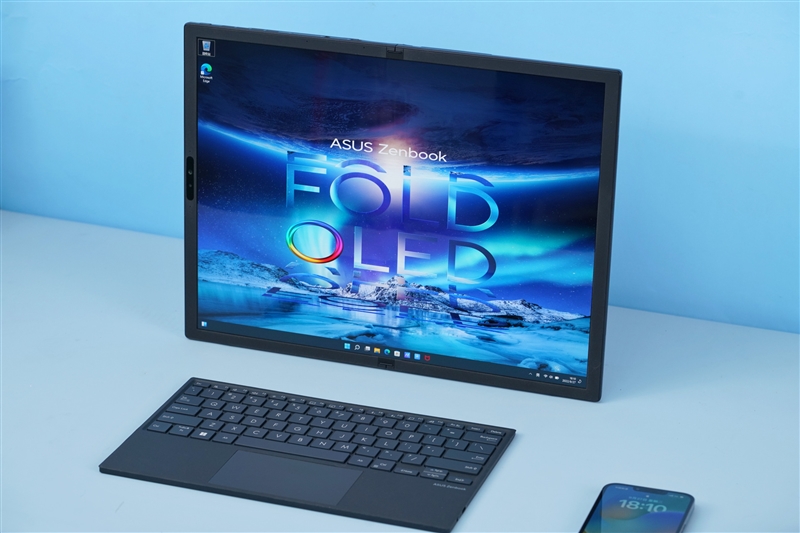

3. Desktop mode

When we unfold the notebook, we can spread the picture to the whole large screen of 17.3 inches, and get the greatest vision and visual impact. Together with the Bluetooth keyboard, we form a complete office platform.

Thanks to the coverage of 100%P3 wide color gamut, it is very suitable for us to watch movies, draw pictures, do PPT, etc., and realize entertainment work.

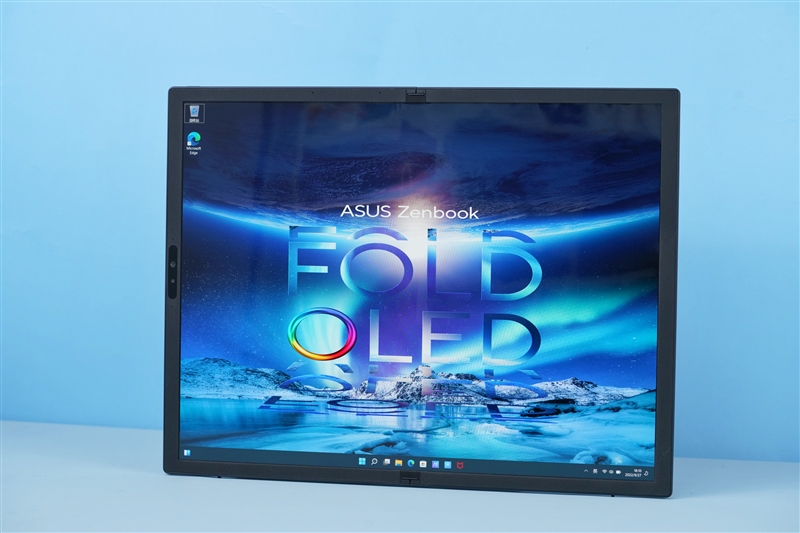

4. Tablet mode

Lingyao X Fold supports automatic screen flipping, erecting a second-changing Win11 tablet, which is more suitable for multi-person meetings or playing games with small partners.

5. Reading mode

Lingyao X Fold will erect the screen, which is equivalent to horizontally placing it in notebook mode. You can read all kinds of words and web pages like a book, and it supports DC dimming, so it won’t be tiring to watch for a long time.

6. Extended mode

Extended mode, as the name implies, when the screen is bent, the display content of the upper part will extend to the lower part to form a whole, which is used to browse the information flow.

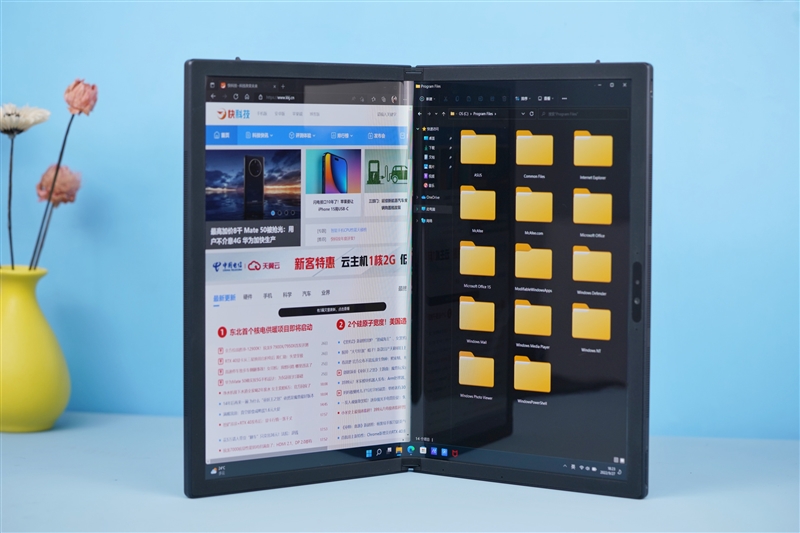

In addition, the upper and lower screens can also display different contents respectively. When writing a manuscript or searching for information, the upper screen searches for information and the lower screen writes content, so the dual-screen display efficiency is higher.

V. Performance test: The 12th generation Core U performed well and responded more quickly in daily office.

Lingyao X Fold is equipped with Core i7-1250U processor, Intel 7 technology, 2 big, 8 small, 10 cores and 12 threads. The basic frequency is 1.1GHz, and the highest core frequency is 4.7GHz. The basic power consumption is only 9W, and the maximum power consumption can be released to 29W.

— — CPU performance

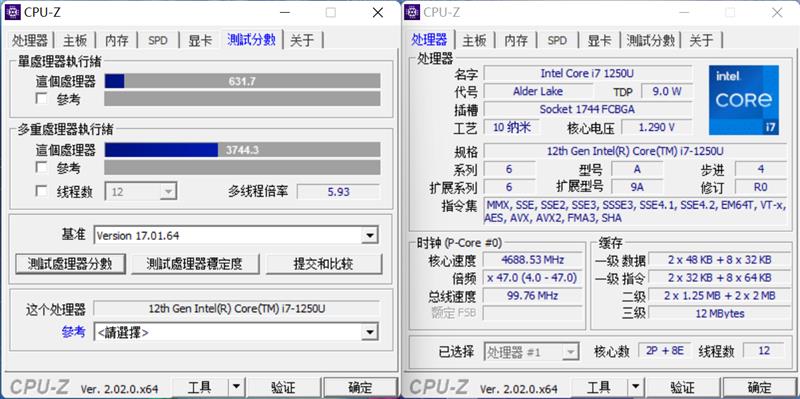

1、CPU-Z

In the CPU-Z score test, the single core score of i7-1250U is 631.7. Thanks to the improvement of architecture and IPC, it has surpassed the standard high-performance version of Ruilong 7 6800H, and the multi-core score is 3744.3. After all, there are 10 cores and 12 threads.

2、CineBench R23

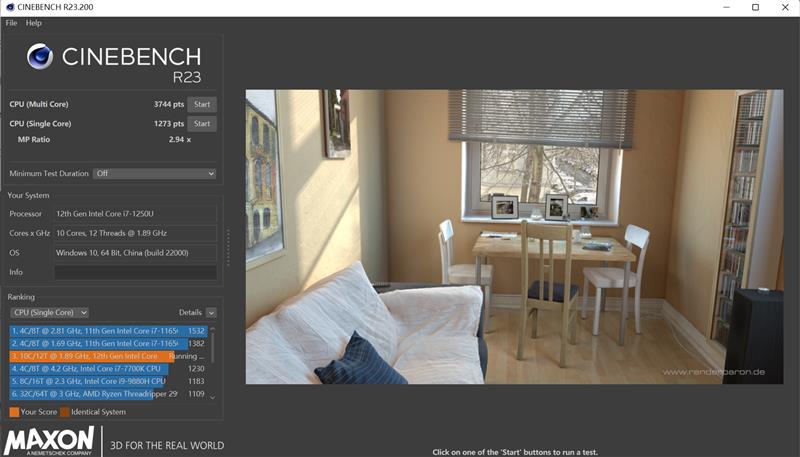

In the CineBench R23 test, the final running score of i7-1250U is 1273 for single core, which is close to the high-performance Ruilong 7 6800H and 3744 for multi-core, which can ensure the fast response of multi-task operation in the folded screen state.

— — Memory test

Lingyao X Fold is equipped with 16GB LPDDR5 4800MHz memory.

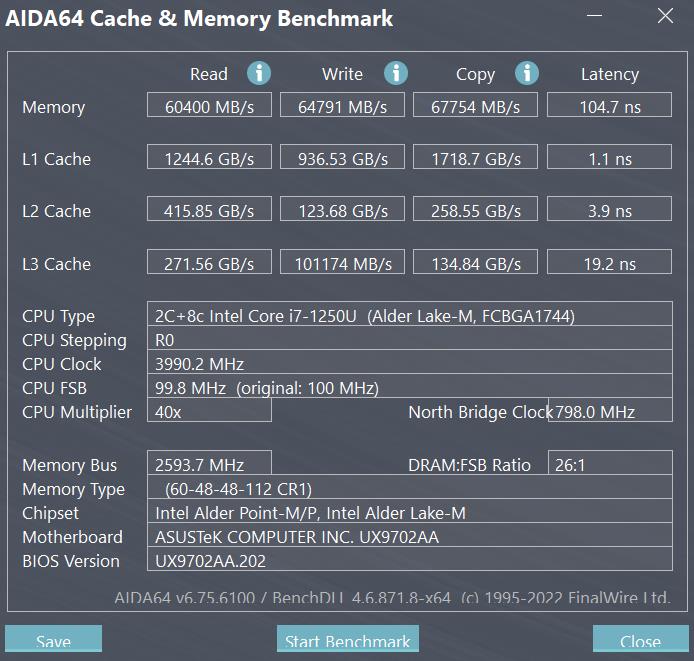

The memory cache test was carried out in AIDA64, and the bandwidth of reading, writing and copying was 60400MB/s, 64791MB/s and 67754MB/s respectively, with a slightly higher delay of 104.7ns.

— — Disk test

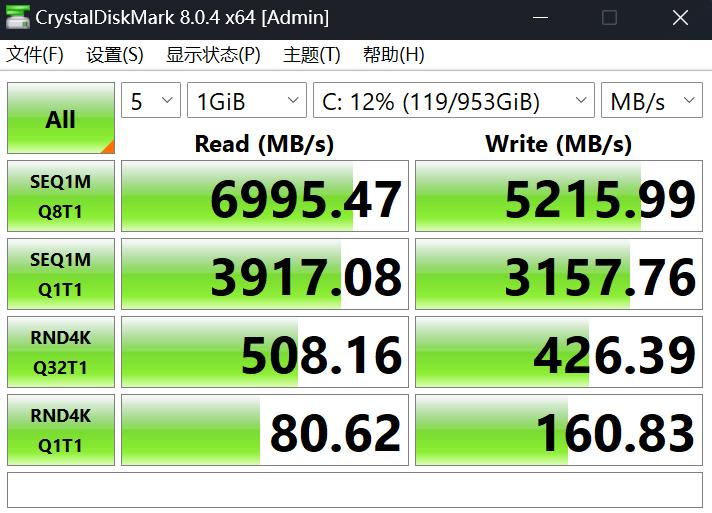

Lingyao X Fold is equipped with a PCIe 4.0 SSD. According to CrystalDiskMark test, the sequential reading speed reaches 7GB/s, which is the limit, and the writing speed is above 5.2 GB/s..

At 4K random speed, the reading and writing are 80.62MB/s and 160.83MB/s respectively.

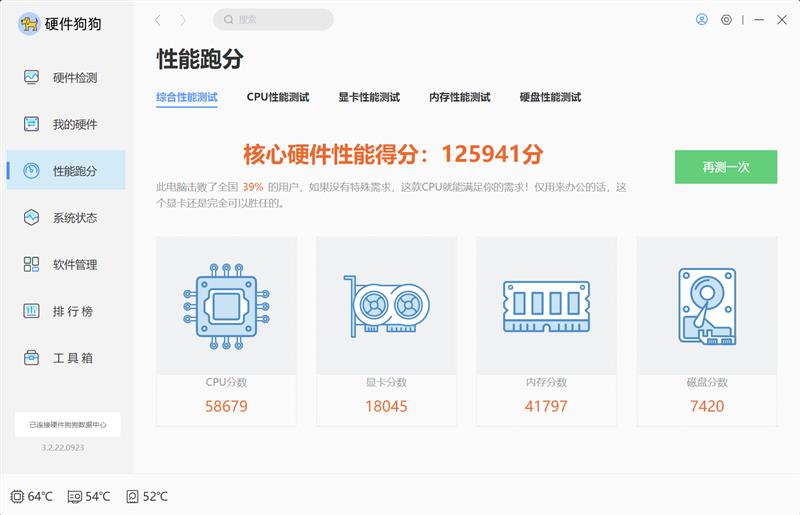

— —Hardware dog

Hardware Dog is a professional hardware detection and running tool produced by Driver House, which is very suitable for mainstream PC players. Relying on the self-developed algorithm of fast technology and authoritative testing modules such as 3DMark, it can quickly, accurately and comprehensively test the overall configuration of PC, carry out single and comprehensive tests on the CPU processor, GPU graphics card, memory and hard disk of the computer, investigate the performance of the whole machine, and know how its performance level is through global performance ranking.

The total score of Lingyao X Fold is 125,941, of which the CPU score of i7-1250U is 58,679, the graphics score of Iris Xe nuclear display is 18,045, the memory score is 41,797, and the hard disk score is 7420.

— — video game testing

Core i7-1250U is integrated with 96-unit core graphics card UHD 770, and the acceleration frequency can reach 1.25GHz. It is the top level of Intel Nuclear Display in terms of specifications. It can play casual games and online games moderately, and can also take into account video transcoding.

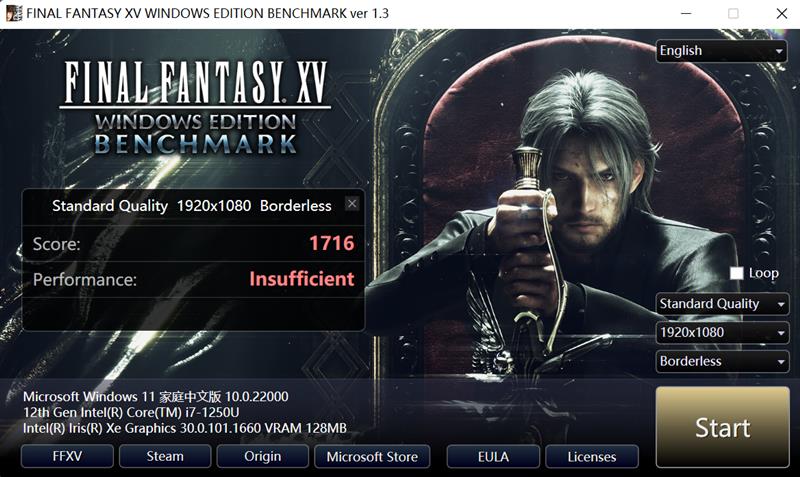

The benchmark test in Final Fantasy 15 gave a score of 1716.

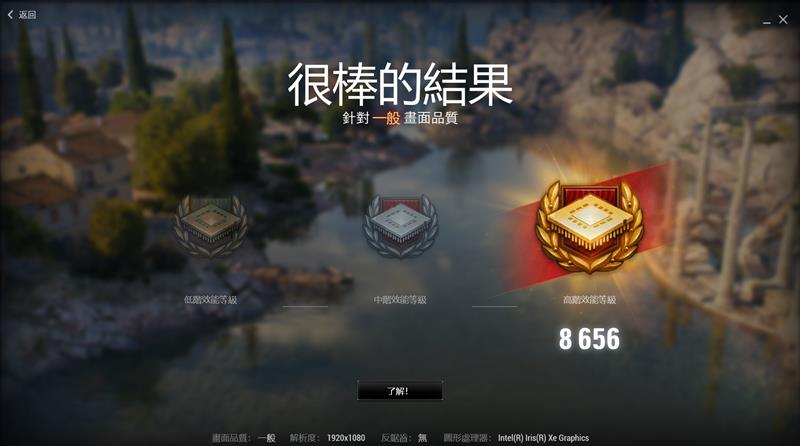

The score in world of tanks is 8656, which translates to a frame rate of about 52.14 FPS.

According to the results of the above tests, Lingyao X Fold has no problem for the smooth operation of online games with little rendering pressure, but considering its positioning, 3A games are not its main battlefield.

Sixth, endurance test: PCMark can be easily used for a whole day in 9 and a half hours.

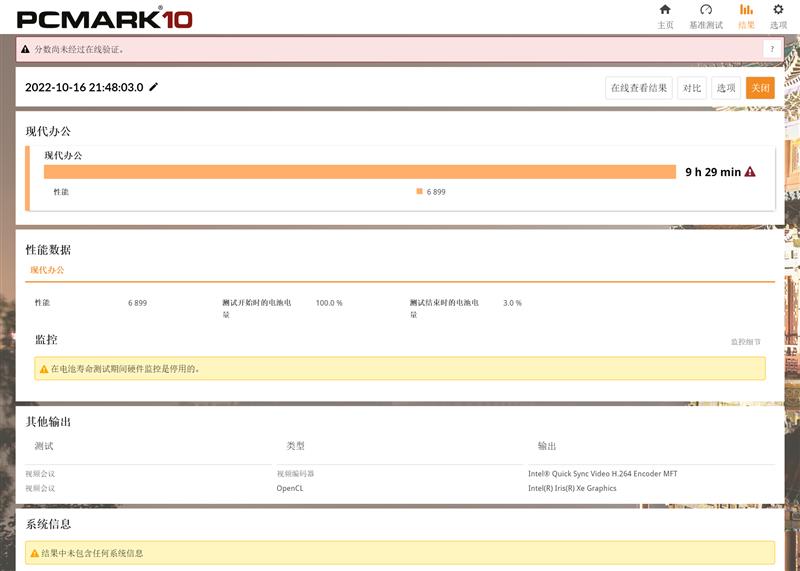

Lingyao X Fold has a built-in 75Wh lithium polymer battery. We used the modern office of PCMark 10 to test the performance of this notebook.

When using a 17.3-inch large screen test, the power mode is "Best Energy Efficiency", other irrelevant processes are turned off during the test, and the secondary screen is turned off, and the screen brightness is changed to 50%.

The final test results show that the notebook score is 9 hours and 29 minutes. This kind of performance can support the needs of a day’s mobile office life when going out.

Seven, summary: one notebook can be used as six, and the productivity and efficiency are doubled.

Lingyao X Fold is the world’s first 17.3-inch folding OLED notebook in the notebook field. With rigorous testing, it supports 30,000 folding times, and there is no need to worry about its life. The subversive six forms make the notebook computer flexible in various scenarios.

In terms of performance, i7-1250U, with 16GB LPDDR5 memory and PCIe 4.0 SSD, can handle all kinds of office scenes and light games with ease.

After this period of experience, the following summary is made for Lingyao X Fold:

1. There are many forms of large-screen advantage content presentation.

The 17.3-inch large screen carried by Lingyao X Fold is also extremely rare in notebooks. The high-quality OLED screen with high resolution, high color gamut and high brightness has nothing to say in color display, and it is even more shocking in movie viewing and game experience.

The operation of multi-window display on the same screen is very convenient, and the display content can be diversified.

2, a variety of forms show office efficiency doubled.

Folding OLED screen, six forms of display, provides support for the office, entertainment, design and other diverse use scenarios of Lingyao X Fold, and notebooks, tablets and reading can be freely used.

This also makes it applicable to a wider range of people, not just office workers.

You can use Lingyao X Fold for games, study, office and other content.

3, the performance is enough, and the office entertainment life is more gratifying.

Although the performance of i7-1250U is not outstanding, considering the business orientation of Lingyao X Fold, its performance can fully meet the needs of daily office.

Secondly, the endurance of 9 and a half hours is already the first-class level of this class, which provides a more lasting experience for daily office, especially for going out.

On the whole, Lingyao X Fold is the world’s first 17.3-inch OLED folding screen notebook computer, but thanks to ASUS’s rich experience and deep accumulation in dual-screen notebooks, both hardware design and application scenario adaptation have reached a very high degree of completion and maturity.

Especially since it bringsThe novel six exhibition forms can be large or small, horizontal or vertical, foldable and expandable, and various use modes can flexibly cope with various scenes, which is equivalent to combining notebooks, tablets and e-books.

In addition, it can fully meet the daily needs of business users in terms of performance while balancing the battery life, diversity and comfort.

The price of 24,999 yuan is not close to the people, but as a subversive product, Lingyao X Fold has created a new era of notebooks, which can already go down in history. It is also expected that folding screen notebooks will flourish as soon as possible like folding screen mobile phones.
